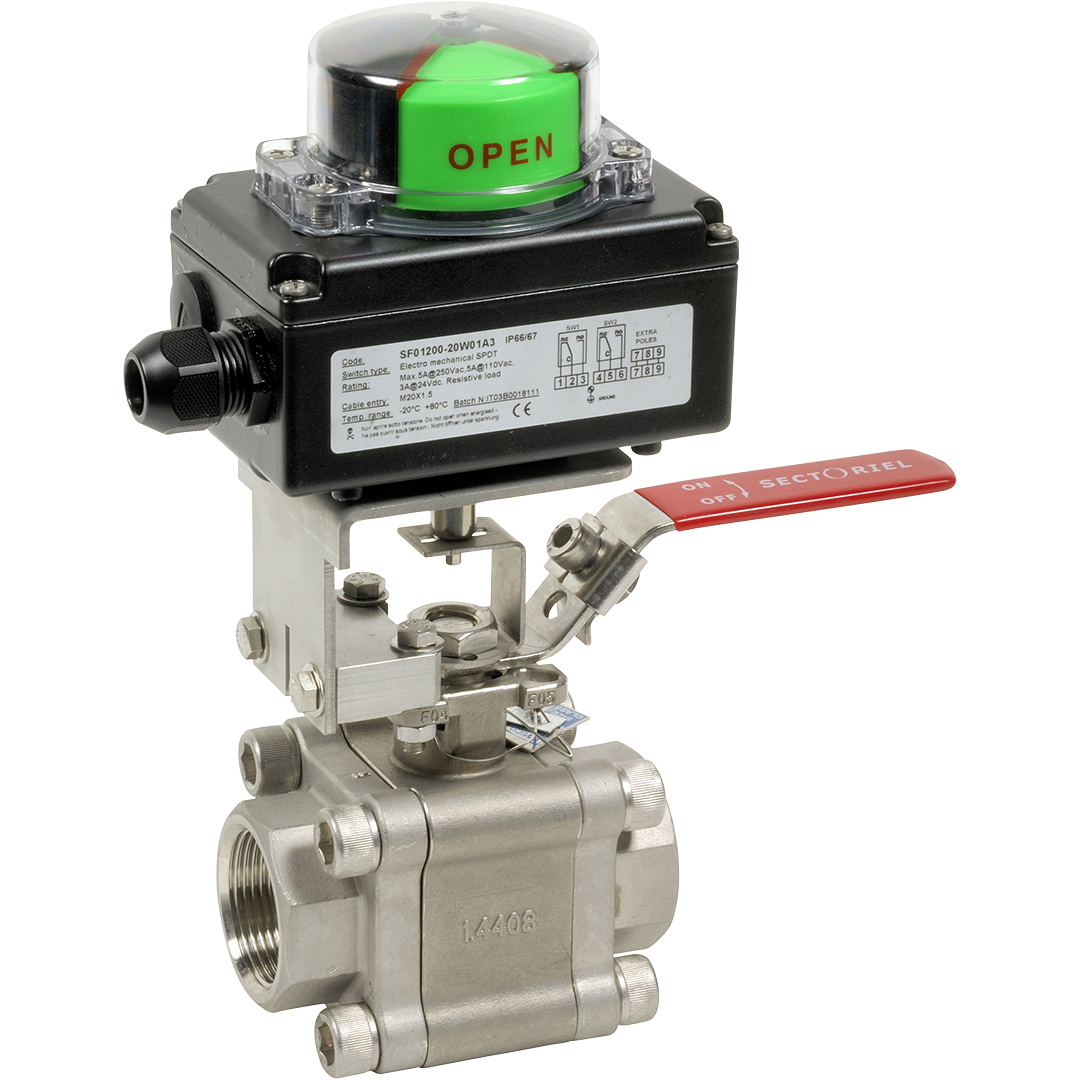

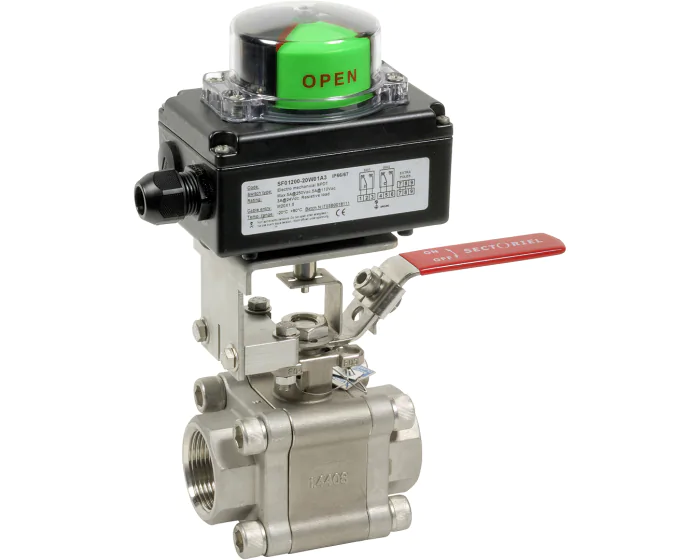

Stainless steel body and ball 1.4408, PTFE/glass seats, full bore. PS : 137 bar- TS : -30/+180°C. Fire safe. Threaded G or welding BW connections. Limit switch box SF012, 2 dry contacts SPDT.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 137 |
| Connections | BSP FF |
| Seats | PTFE-Stainless steel |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN15 - 1/2'' | 2713720462012 | S1008038 |
€407.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN20 - 3/4'' | 2713730462012 | S1008039 |
€419.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN25 - 1'' | 2713740462012 | S1008040 |
€473.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN32 - 1''1/4 | 2713750462012 | S1008041 |
€525.44
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN40 - 1''1/2 | 2713760462012 | S1008042 |
€540.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN50 - 2'' | 2713770462012 | S1008043 |
€658.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN15 - 1/2'' | 2713820462012 | S1008044 |
€407.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN20 - 3/4'' | 2713830462012 | S1008045 |
€419.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN25 - 1'' | 2713840462012 | S1008046 |
€473.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN32 - 1''1/4 | 2713850462012 | S1008047 |
€525.44
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN40 - 1''1/2 | 2713860462012 | S1008048 |
€540.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN50 - 2'' | 2713870462012 | S1008049 |
€658.53
(excl. btw)
|
add to cart |
